JT10L-606 Crop Sprayer Drone Crop Sprayer

$4,998.99

Continue Shopping SKU: 137488845017785 Categories: ,
The Biggest 30L Agricultural Drone Crop Sprayer Uav Drone Crop Sprayer For Agriculture Sprayer Drone
Sprayer drone details
H9de8dd77494f4f9ea1de54882cfff2b54

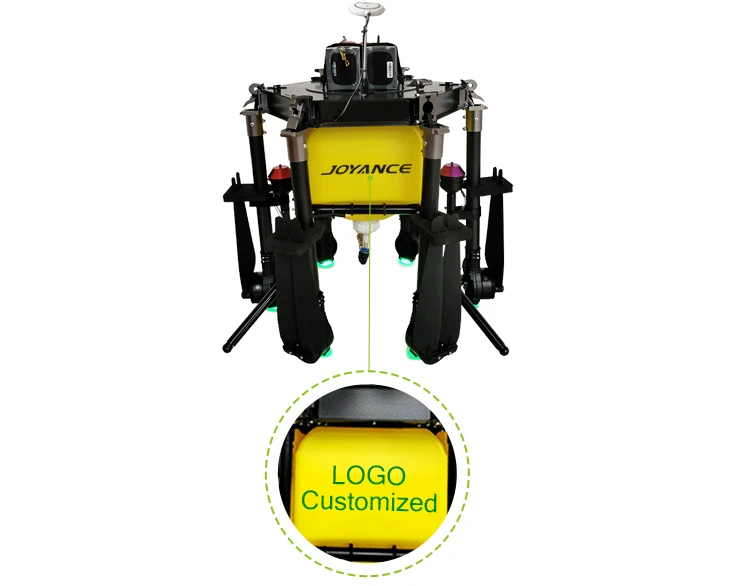

Joyance Tech provides OEM/ODM services for agriculture drones.
He5d12854fc4844cfb72afb6e5a4ec3fab
No
Technical parameter
JT10L-606
JT20L-606
1
Pesticide load
10 liters
20 liters
2
Self weight
10.5 kg
18.5 kg
3
Take-off weight
23 kg
44 kg
4
Fly time
10~15 min
10~15 min
5
Spraying efficiency
5~6 hectares/hour
9~11 hectares/hour
6
Spray width
4~6 m
7~8 m
7
Spray speed
0~8 m/s
0~10 m/s
8
Nozzle
2 centrifugal nozzles
4 centrifugal nozzles
9
Battery
2 pcs 6S 17000 mAh
2 pcs * 6S 23000 mAh
10
Spray flow
1~1.5 L/min
2.5~ 3 L/min
11
Flying radius
1500 m
1500 m
12
Flying height
0~30 m
0~30 m
13
Wind resistance
10 m/s
10 m/s
14
Spread size (m)
1.3 * 1.3 * 0.45 m
1.95 *1.95 * 0.57 m
15
Folded size (m)
0.6 * 0.6 * 0.51 m
0.7 * 0.7 *0.8 m
16
Aluminum box size/weight
73*67*65 cm / 50 kgs
75*85*95 cm / 90 kgs
Hb97b3985f9064764b7146a37ffbac91fM
Agriculture Drone Applications
Plantations: rice, corn, sugar cane, soybean, flower, coffee, veg etables, fruit trees, etc.
Chemical/fertilizer use: liquid pesticide, herbicide, solid fertilizer/granule fertilizer, fungicide, insecticide, seed, biological ball,etc.
Hf7a5aaea4e18448b971dda1a8e13b666W
H89184c23e2b54b7298bfc4148ec1d58an
Advantages of Joyance sprayer drones
Joyance
Others
Hb73bc3dfb9184dceb6b2c6a7f4b2d0d4O
Joyance: 30mm diameter of tube, and 2mm  thickness carbon fiber tube.

Other brands (right side):Less diameter,

or  same diameter, but only 1mm thickness       carbon fiber tube.
H270a5f8e88cd41a9a4555f7556bbba1bS

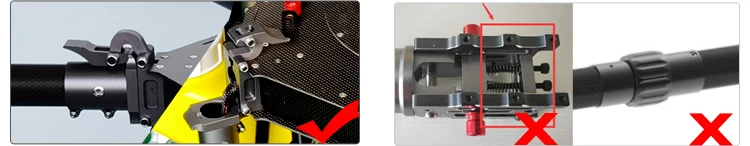

Joyance: Aviation aluminum folding joints,also one-piece designed, rust-proof, fasten connection and very strong, more safer for heavy duty work.

Other brands: spring designed , easy to be          damaged, short life.

The thread will be loosen after working for
some time,it’s not stable enough to fly.
Hd98b88d168444d38882c17d2a683f1beT
Six axles, six propellers, more stable flight; Six heavy-duty motors, more powerful.
H76b1d82b2c7c426586f63f3339a3d356U
Centrifugal nozzles has a better atomization and penetration effect . ● 50-200 um droplet diameter ● Spray degree: 170 ● Not easy to block. ● More suitable for spraying in orchards, crops, vegetables, rice, corn, etc.
Hea17ab8b427249c883ba3b6ad37ff766D
Joyance agriculture sprayer drone with granule spreader can spread solid fertilizers, granule fertilizer, seeds, sows, feed and so on. Besides it can be switched spraying system and spreading system by one-key. Also Sprayer & Spreader 2 in 1 drone = save lots of cost
FAQ

Q1. Are you sprayer drone factory? A1: Yes, we are a professional manufacturer of agricultural spraying drones: sprayer drone, spreader drone, fogger drone, and biological control drone.

Q2. Is uav sprayer drone ready to fly? A2: Yes. Before dispatch, JOYANCE will assemble the agriculture drone, set parameters and test flight in the field, ensure that all the drones are 100% qualified and rea Q3. What’s your MOQ of agricultural drone? A3: MOQ ≥1.  More than 100 units order is available. Besides, we are looking for dealers and agents all over the word. Welcome to contact us for more. Q4. What’s the delivery time of sprayer drone? A4: 2-3 days for one, please contact us for mass order.  Q5. What’s your payment term? A5: 50% deposit, balance before delivery. We accept T/T, credit card, paypal and western union, etc. payment methods.
Capacity

10L

Model Number

JT10L-606 sprayer drone
