JT20L-606 sprayer drone

$7,400.99

Continue Shopping SKU: 137511068017785 Categories: ,

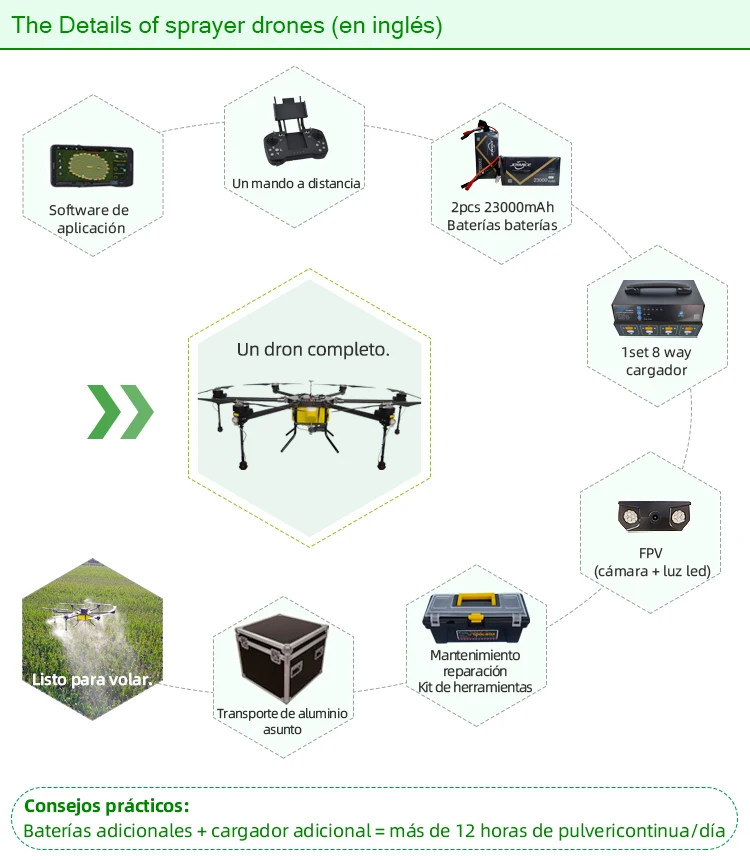

Details of agriculture drone
H0c43b25c3e7c43df967c814f2a6a9066w
Joyance Tech provides OEM/ODM services for agriculture drones.
H8d4d795831214e6fa06c6d854f3f25bdq
No
Technical parameter
 JT10L-606
JT20L-606
1
Pesticide load
10 liters
20 liters
2
Self weight
10.5 kg
18.5 kg
3
Take-off weight
23 kg
44 kg
4
Fly time
10~15 min
10~15 min
5
Spraying efficiency
5~6 hectares/hour
9~11 hectares/hour
6
Spray width
5~6 m
7~8 m
7
Spray speed
0~8 m/s
0~10 m/s
8
Nozzle
2 centrifugal nozzles
4 centrifugal nozzles
9
Battery
2 pcs * 6S 17000 mAh
2 pcs * 6S 23000 mAh
10
Spray flow
1~ 1.5 L/min
2.5~ 3 L/min
11
Flying radius
1500 m
1500 m
12
Flying height
0~30 m
0~30 m
13
Wind resistance
10 m/s
10 m/s
14
Spread size (m)
1.3 * 1.3 * 0.45 m
1.95 *1.95 * 0.57 m
15
Folded size (m)
0.6 * 0.6 * 0.51 m
0.7 * 0.7 *0.8 m
16
Aluminum box size/weight
73*67*65 cm / 50 kgs
75*85*95 cm / 90 kgs
Hd90f5177cabd41b4977eafed8b0d99d2W
Agriculture Drone Applications

Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees, etc.

Chemical/fertilizer use: liquid pesticide, herbicide, solid fertilizer/granule fertilizer, fungicide, insecticide, seed, biological ball, etc.
OYANCE agriculture sprayer drones have been widely used for crop protection, mosquito control, and public disinfection.
H8f63b497540b496399c28ca08fe515f4k
Hca05cd71804b4e62aea31e7fb7c7d2d99
Advantages of Joyance sprayer drones
Joyance
Others
Hb73bc3dfb9184dceb6b2c6a7f4b2d0d4O
Carbon fiber tube: 40 mm of diameter; 2mm thickness carbon fiber tube.
Other brands (right side):Less diameter, or same diameter, but only 1mm thickness carbon fiber tube.
Heacdbe7bb1a548199341c77fee1bce688
Joyance:3mm thickness centre plate.
Other brands:1mm thickness centre plate
H718afd4a01164d8d8b99918653f0d4715
Joyance: Aviation aluminum folding joints,also one-piece designed, rust-proof, fasten connection and very strong, more safer for heavy duty work.

Others brands: spring designed, easy to be damaged, short life. The thread will be loosen after working for some time,it’s not stable enough to fly.

H76b1d82b2c7c426586f63f3339a3d356U

Joyance: This model sprayer drone has 4 centrifugal nozzles which has a better atomization and penetration effect :

50-200 um droplet diameter
Spray degree: 170 Not easy to block. More suitable for spraying in orchards, crops, vegetables, rice,corn, etc.
Hea17ab8b427249c883ba3b6ad37ff766D
Joyance agriculture sprayer drone with granule spreader can spread solid fertilizers, granule fertilizer, seeds, sows, feed and so on. Besides it can be switched spraying system and spreading system by one-key. Also Sprayer & Spreader 2 in 1 drone = save lots of cost.
FAQ
Q1. Are you sprayer drone factory? A1: Yes, we are a professional manufacturer of agricultural spraying drones: sprayer drone, spreader drone, fogger drone, and biological control drone.  Q2. Is uav sprayer drone ready to fly? A2: Yes. Before dispatch, JOYANCE will assemble the agriculture drone, set parameters and test flight in the field, ensure that all the drones are 100% qualified and ready to fly. Q3. What’s your MOQ of agricultural drone? A3:MOQ ≥1.  More than 100 units order is available. Besides, we are looking for dealers and agents all over the word. Welcome to contact us for more. Q4. What’s the delivery time of sprayer drone? A4: 2-3 days for one, please contact us for mass order.



Capacity

20L

Model Number

JT20L-606
